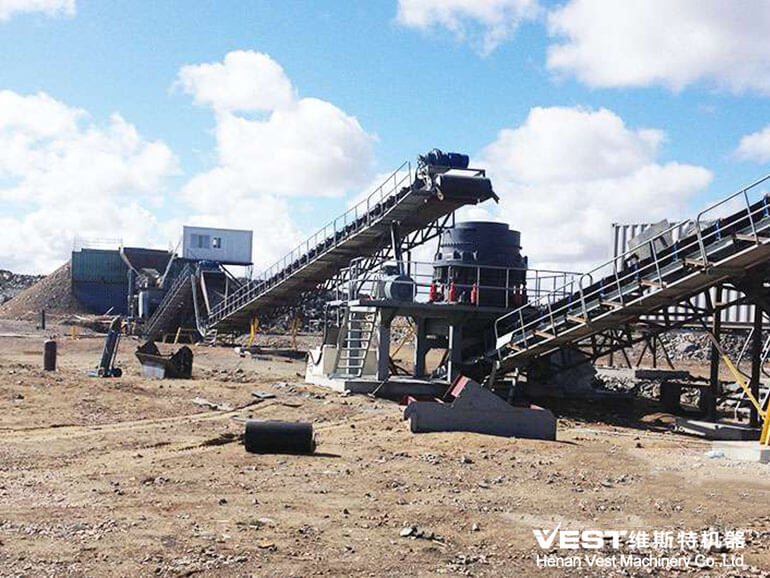

50-100tph Granite Crushing Production Line In Russia

Raw materials: granite
Capacity: 50-100tph
Location: Russia
Russia 50-100 t/h granite crushing production line is a very efficient and stable ore processing production line, which can crush granite into sand and gravel of different particle sizes according to user needs.

If you have any questions,you can ask customer service online !

Get Quotes leave message

Granite is mainly composed of quartz, feldspar and mica, of which feldspar content is 40%-60% and quartz content is 20%-40%. Its color is determined by the type and quantity of the components. The stone has a dense structure, high compressive strength, high surface hardness and strong durability.

Therefore, when crushing granite, try to choose crushing equipment with the lamination principle, such as Jaw Crusher, Cone Crusher, etc.

For this kind of high-hardness stone, our company recommends the following crushing production process configuration:

Raw stone feeding way	Truck
Hopper	For receiving the raw stone flow
Vibrating feeder	ZSW0930
Primary jaw crusher	PE500x750
Secondary cone crusher	PSGD-0906
Vibrating screen	3YKR1548
Belt conveyors	B800, B650, B500

50-100tph Granite Crushing Production Line In Russia

Crushing Process Description

1. Raw material (<425mm) will be fed and dropped on the vibrating feeder by strong vibrating frequency, which will make the raw stone be fed into primary jaw crusher uniformly and stably.

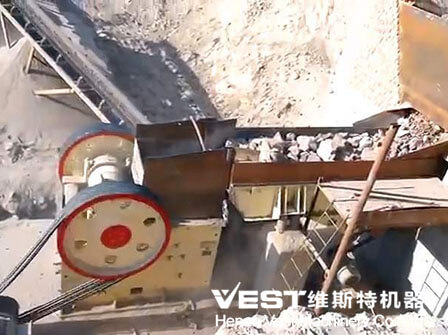

2. The primary jaw crusher uses the squeezing principle caused by the movement of the jaw plate to reduce the material to size.

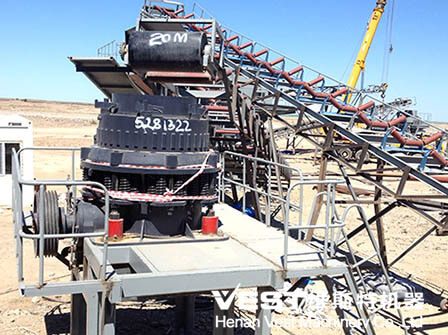

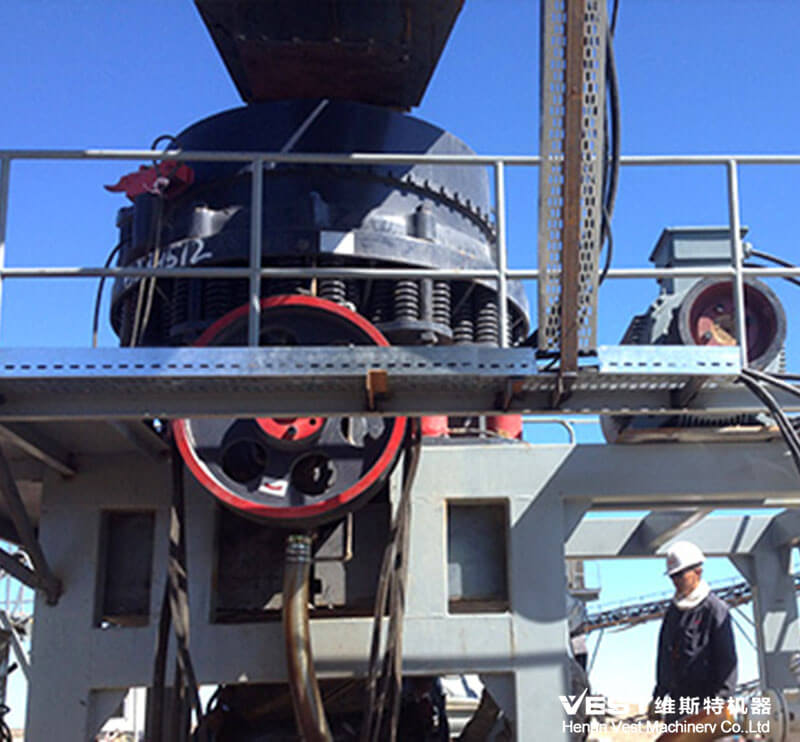

3. After primary crushing, the crushed stone will be conveyed to secondary cone crusher for recrushing to increase target size particle yield.

4. After crushing work finished, the vibrating screen will help sieve finished product to different qualified product size range, such as 0-5, 5-15, and 15-40mm.

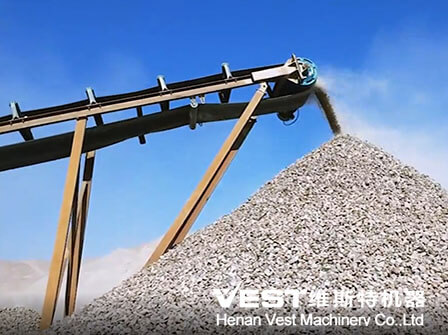

5. Belt conveyor is the core conveying equipment connecting the entire crushing work. Installation angle is within 17 degree.
