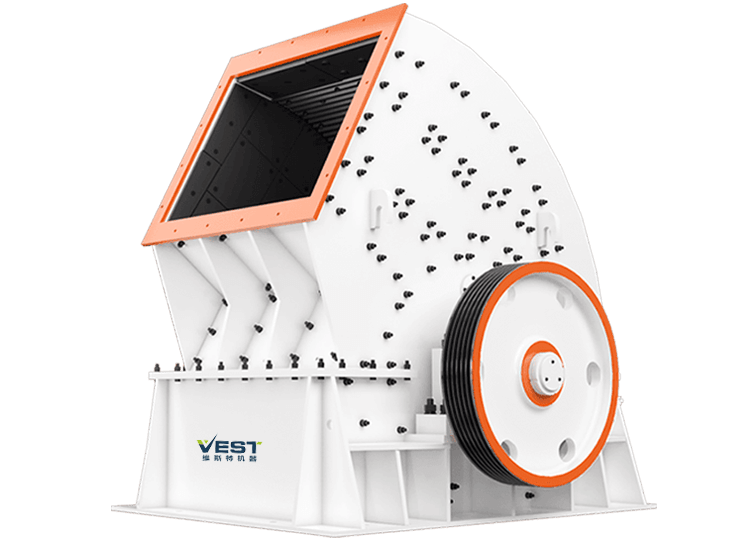

PCZ Heavy Hammer Crusher-crushing equipment--Henan Vest Machinery Co., ltd

Advantages of PCZ Heavy Hammer Crusher

Heavy-Duty Construction

The PCZ Heavy Hammer Crusher features a reinforced frame and high-strength alloy hammers to withstand high operating pressures.

High Crushing Efficiency

This crusher is equipped with a large high-speed rotor and heavy hammers to ensure high output and excellent crushing ratio.

Versatile Operation

It can handle materials with high moisture content and large feed volumes and can complete a variety of crushing tasks.

Reduced Energy Consumption, Advanced Safety Features

Efficient design reduces energy consumption. Equipped with safety mechanisms. Ensures safe working of the machine and the operator.

PCZ Heavy Hammer Crusher of Application

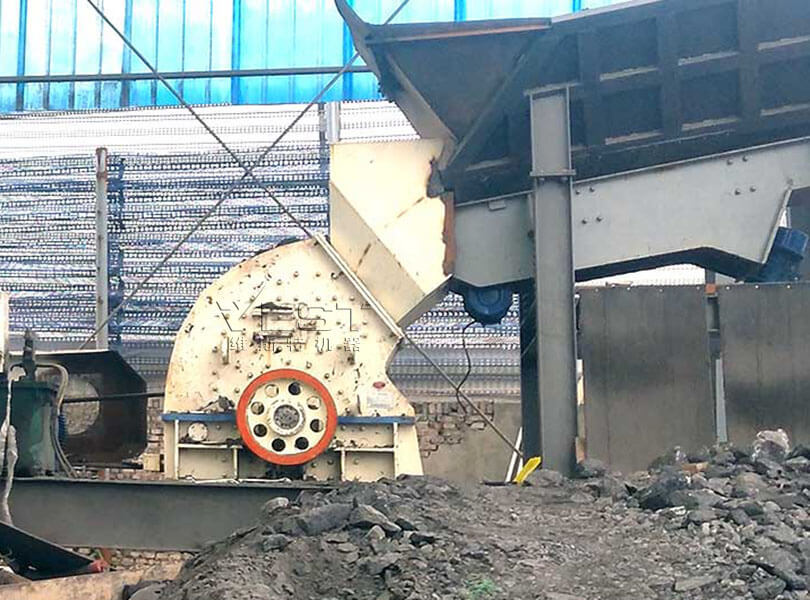

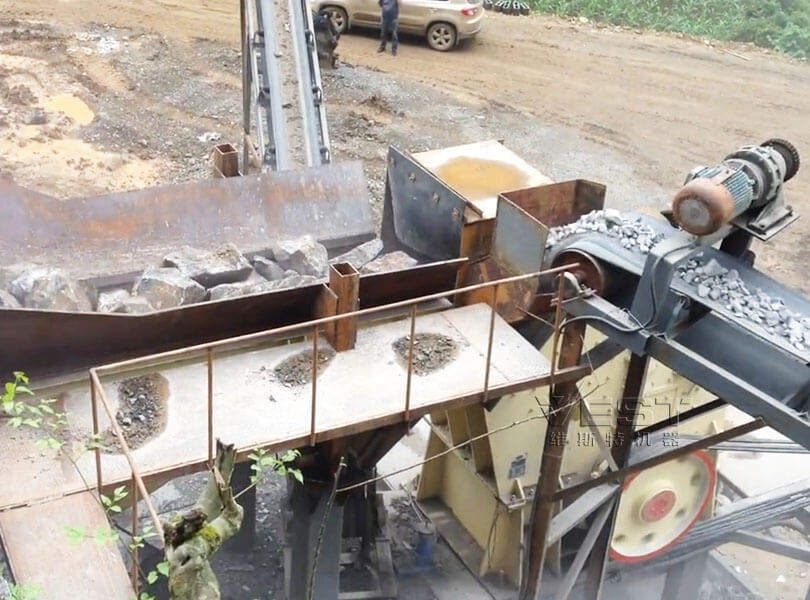

The PCZ Heavy Hammer Crusher is a robust and highly efficient crushing machine designed for heavy-duty applications. Its primary function is to crush large, bulky materials with high hardness into smaller, manageable sizes. Ideal for industries such as mining, construction, and metallurgy, this crusher excels in processing materials like limestone, granite, basalt, and ore.

What Is The Working Principle Of The PCZ Heavy Hammer Crusher

When the PCZ heavy hammer crusher is working, the material is fed into the machine cavity from the feeding port above, and the rotor in the machine cavity is driven by the vibration motor to rotate at high speed in the crushing cavity, driving the hammer to hit, shear and grind to complete the crushing process.

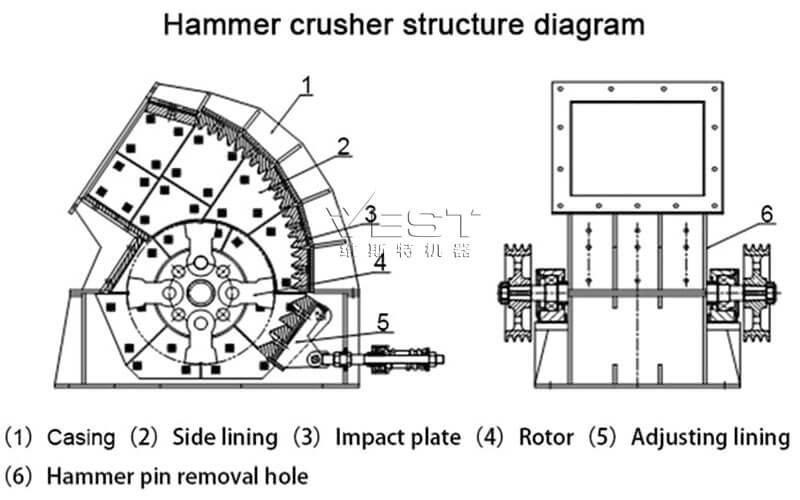

The VEST PCZ heavy hammer crusher has a movable liner at the bottom of the rotor.

The crushed material is discharged from the stone through the movable liner, and the material that does not meet the requirements continues to be hit by the hammer until it is discharged from the machine.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Feeder Opening Size (mm)	Rotor Size (mm)	Feeding size (mm)	Power (kw)	Capacity (t/h)
PCZ-0808	800×500	850×790	≤450	2×37	50-90
PCZ-1308	850×800	1310×790	≤600	2×55	100-160
PCZ-1510	1000×850	1500×950	≤700	2×132	160-210
PCZ-1512	1210×900	1500×1160	≤750	2×160	220-350
PCZ-1615	1500×1200	1650×1452	≤1000	2×200	350-500
PCZ-2015	1500×1400	2000×1500	≤1200	2×315	500-800

***The capacity will vary according to different materials, feed particle size, and other factors. Please contact VEST for equipment selection for specific projects.

Crushed product size
