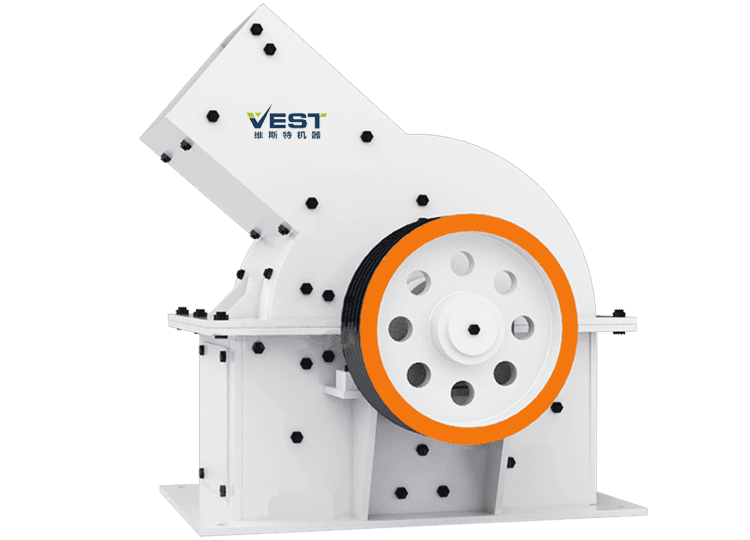

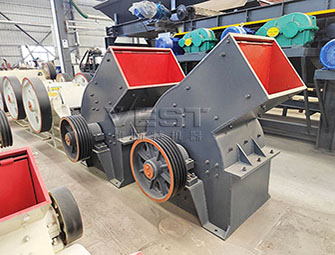

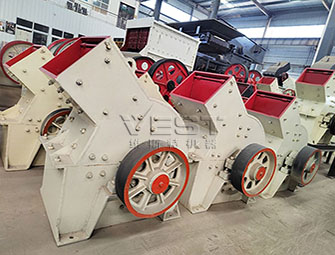

PC Hammer Crusher-crushing equipment--Henan Vest Machinery Co., ltd

Advantages of PC Hammer Crusher

Hammer Head Uses New Technology

The working hammer is cast with a new technology, which is wear-resistant and impact-resistant.

Flexibly Adjust The Required Particle Size

The required granularity can be adjusted according to customer requirements.

The Structure Of The Machine Body Is Sealed

Solves the problems of dust pollution and ash leakage of the machine body in the crushing workshop.

An Upgraded Product

The overall design has the advantages of a beautiful appearance, a compact structure, few wearing parts, and convenient maintenance.

PC Hammer Crusher of Application

PC hammer crusher is a kind of industrial machinery, whose principle is to crush the material by the collision of the high-speed rotating hammer body and the material. It has the characteristics of a simple structure, a large crushing ratio, and high production efficiency. It can be crushed in dry and wet forms. It is suitable for mining, cement, coal, metallurgy, building materials, highways, combustion, and other departments to finely crush medium-hard and brittle materials.

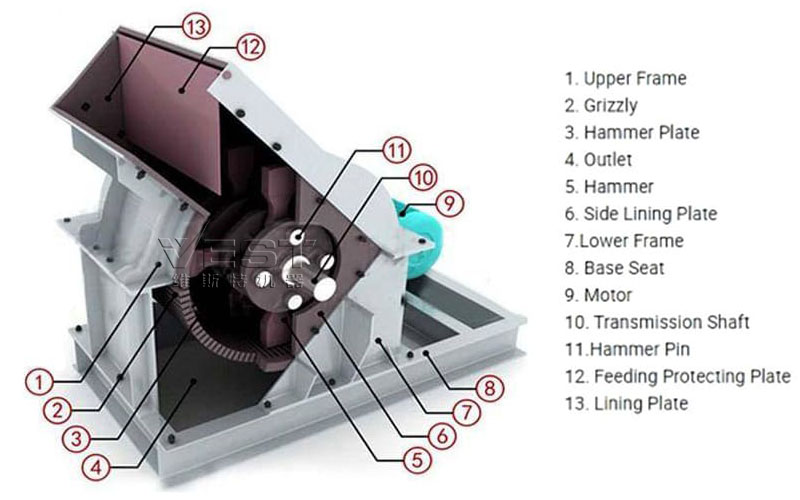

What Is The Working Principle Of The PC Hammer Crusher

The motor of the PC hammer crusher drives the rotor to rotate rapidly in the crushing chamber. The raw materials enter the crusher from the feed port and are impacted, sheared, and ground by the high-speed rotating hammer.

The lower part of the rotor assembly is equipped with grate bars. The materials smaller than the grate mesh are screened out, and the rest of the materials are left for further hammering until they reach the standard particle size.

The size of the final product can be adjusted by replacing the grate bars, and the gap between the rotor assembly and the grate bars can also be adjusted according to different requirements.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Input Size (mm)	Output Size (mm)	Capacity (t/h)	Motor Power (kw)
PC400x300	<100	<15	5-10	11
PC600x400	<220	<15	10-25	22
PC800x600	<350	<15	20-40	55
PC1000x800	<400	<15	25-80	110

***The capacity will vary according to different materials, feed particle size, and other factors. Please contact VEST for equipment selection for specific projects.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us Anytime.

REQUEST A QUOTE contact

Maybe you are interested in

more+

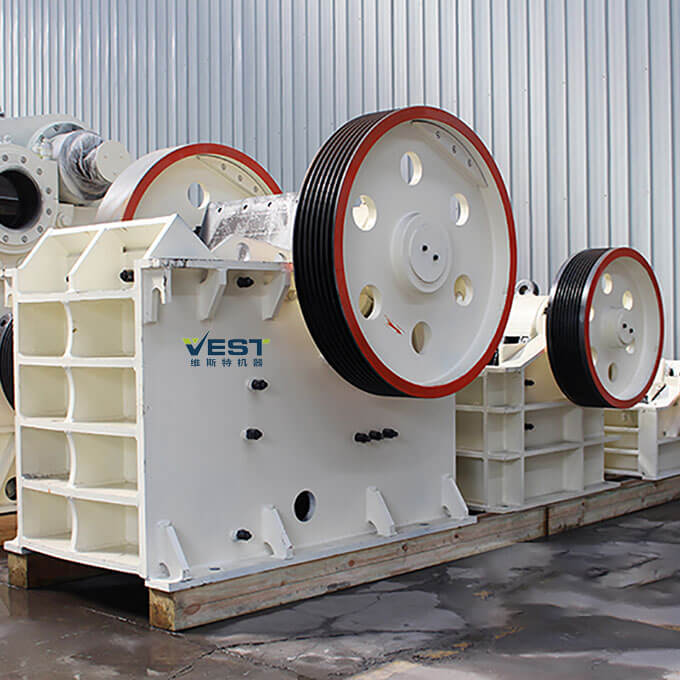

C series jaw crusher

C Series jaw crushers are mainly used as primary c···

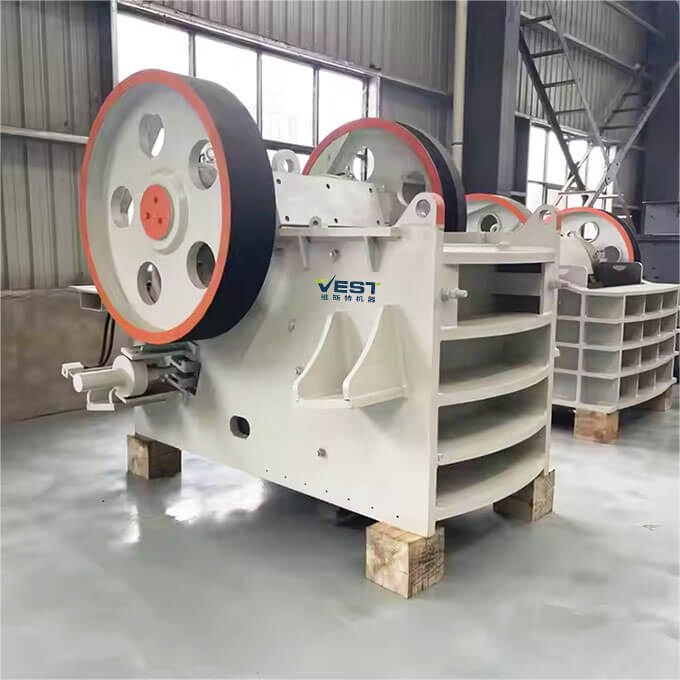

PE Series Jaw Crusher

PE Jaw crusher is one traditional primary or secon···

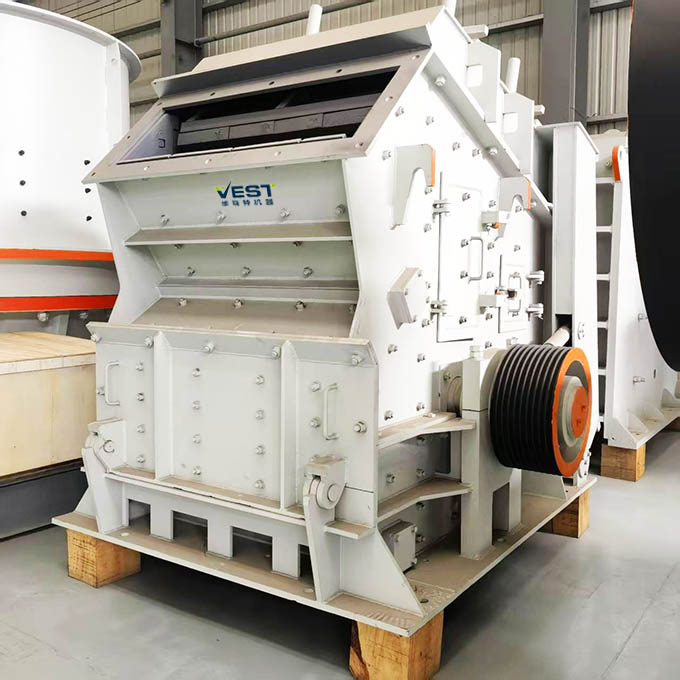

PFW Series Impact Crusher
