100-150tph Rock Mobile Crushing Plant-mobile cases--Henan Vest Machinery Co., ltd

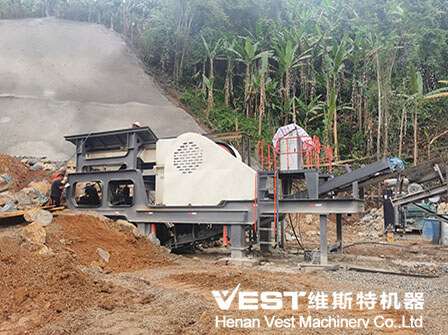

PE69 jaw crusher

Specifications: feed opening size 600×900mm, processing capacity 90-180t/h, maximum feed size ≤500mm

Function: coarse and medium crushing of various ores and bulk materials, crushing the materials into the required particle size by extrusion, splitting, etc.

Features: large crushing ratio, uniform product particle size, simple structure, reliable operation, convenient maintenance, low operating cost

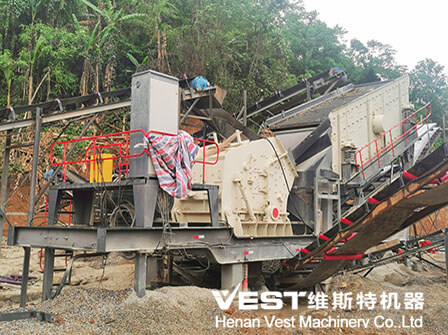

PF1214 impact crusher

Specifications: rotor diameter 1250×1400mm, power 160kW, maximum feed size ≤430mm

Function: high-speed impact crushing, crushing materials into smaller and more regular products, commonly used in stone shaping and medium and fine crushing operations.

Features: high crushing efficiency, good product particle shape, low energy consumption. Rapid maintenance can be carried out through the hydraulic cover opening device, and the use of wear-resistant plate hammer increases the service life by 30%

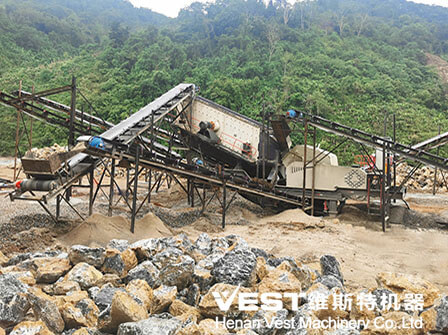

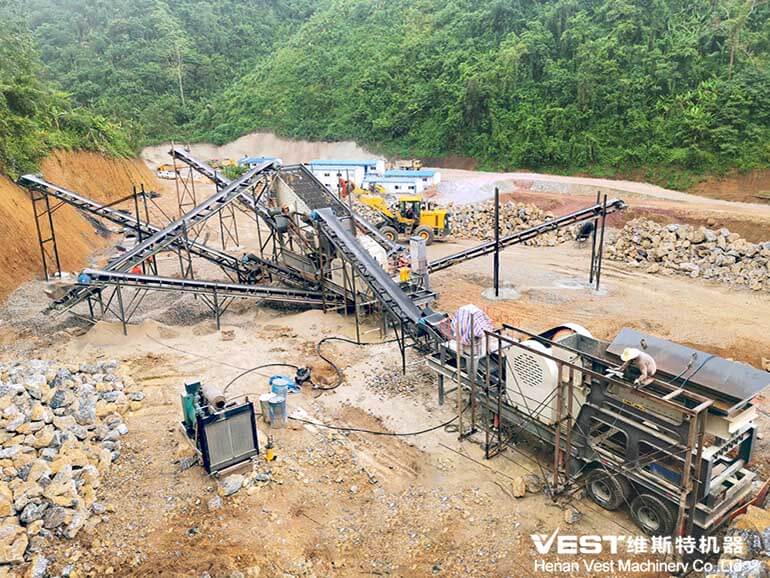

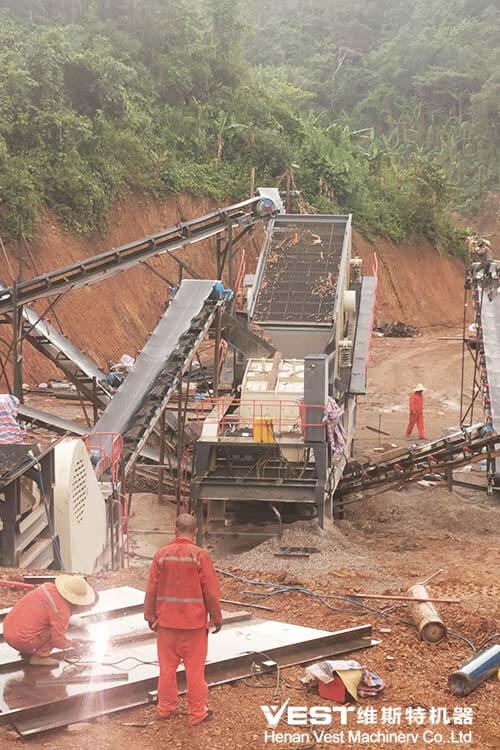

100-150tph Rock Mobile Crushing Plant

Analysis of the advantages of equipment combination

1. Multi-stage crushing synergy to improve overall efficiency

Combination of coarse and fine crushing: Mobile jaw crushers are good at coarse crushing (handling large pieces of material, such as concrete blocks, bricks and stones in construction waste), while mobile impact crushers are more suitable for medium and fine crushing (improving the particle shape of finished products). The combination of the two forms a complete crushing process. After the jaw crusher completes the initial crushing, the impact crusher further refines the material to improve the quality of the finished product.

Closed-loop circulation system: Screening equipment can be added to some configurations to form a closed-loop circulation of "jaw crusher coarse crushing → impact crusher crushing → screening → return and re-crushing", reducing over-crushing and improving the qualified rate of finished products.

2. Flexible adaptation to complex scenarios

Site adaptability: Both are mobile equipment and can be quickly transferred to construction sites, mines or narrow areas for operation without fixed infrastructure (such as hardened ground, piling).

3. Reduce overall operating costs

Reduce transportation costs: The combined equipment can complete multi-stage crushing directly on site, avoiding multiple transfers of materials to fixed production lines, saving logistics costs.

Energy consumption optimization: The deep cavity design and high crushing ratio of the jaw crusher reduce the energy consumption of coarse crushing, and the impact crusher reduces the need for subsequent shaping by optimizing the cubic particle shape, and the overall energy efficiency is improved by 15%-30%.

4. Dust and noise control

The mobile device has built-in dust removal devices (such as spray systems and sealing structures). When used in combination, the environmental protection performance is superimposed, effectively reducing dust and noise pollution at the work site.

5. Excellent particle shape

The impact crushing principle of the impact crusher makes the finished product cubic and less needle-like, which can be directly used for high-quality concrete or road base materials, reducing secondary processing.
